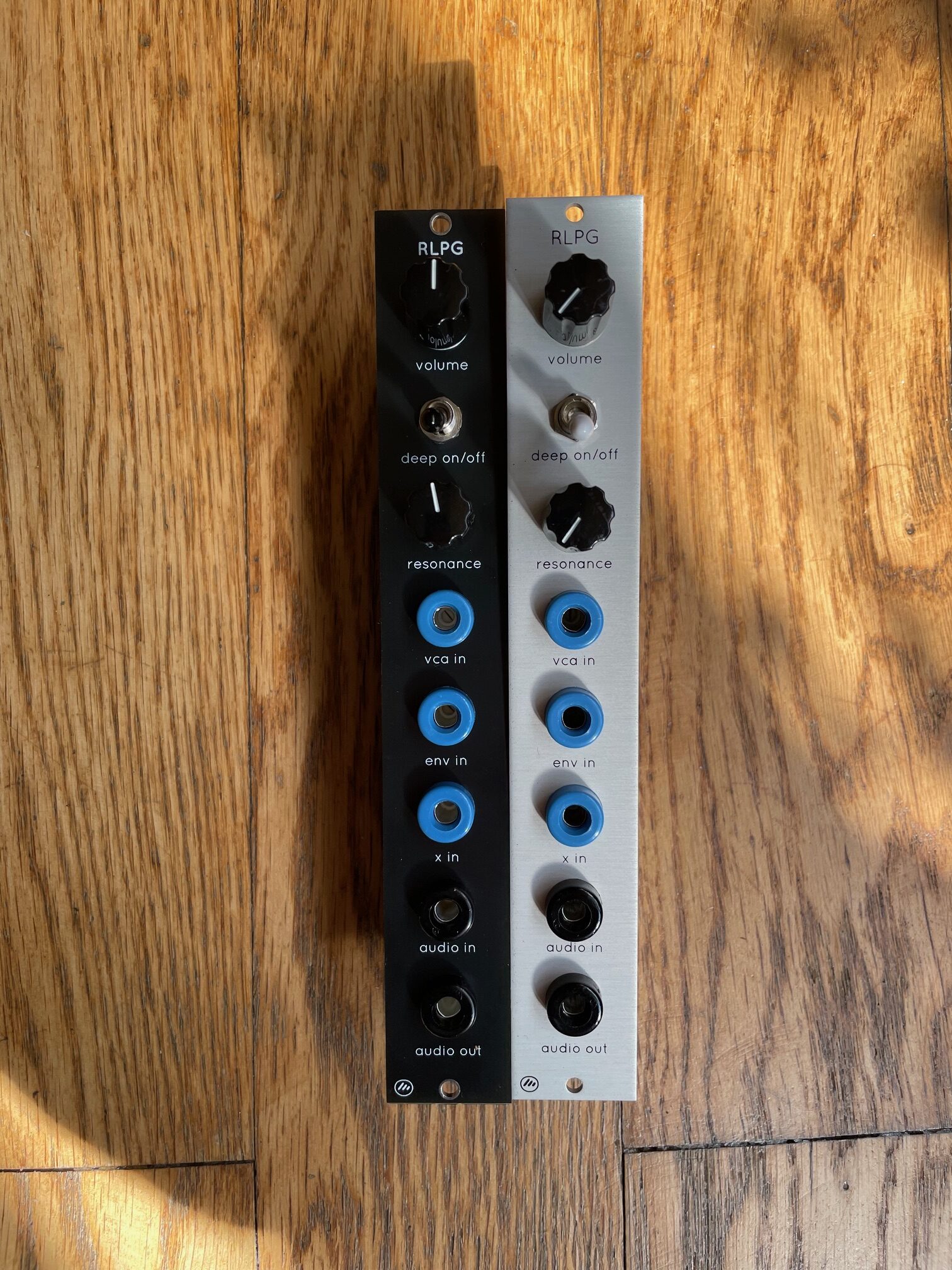

Resonant Low Pass Gate with a twistWhat is to say about the RLPG, well it is an LPG with resonance. LPG’s are famous for their bongo sound when triggered. You can put any sound into it and then send voltages, triggers in the available inputs. This mmodule likes you to experiment with it.It includes Voltage Control of the Pre-VCA, Post VCA and Resonance amount. There is a switch to select mode High or Deep sound.Also, regarding the VACTROLs, you can use Xvive or alternative copies, all works but different flavours.
WIP 3 rows can have different clocks or a main clock. When the internal clock is used, row 2 starts when row 1 ends and row 3 starts when 2 is at the end. Then the outputs are per row 0 > 10v and -5 > +5v. The special outputs are capital letter 100% cv and small letter 50% cv
ADSR2VCA joins the silver panel line.
One ADSR and 2 VCA in 2 inch LW format 4U module
Envelope generator with some very useful features. CV is additive for overall length of ADSR stages in ADSR mode and add even more length to just the Release stage by adding CV into the Release jack. AR mode allows for snappy to long dynamic rhythm lengths. Very short minimum lengths, self cycling (connect EOC and TRIG IN together) and a maximum output of 5 volts.
Stage Lengths:
Attack: 4ms-2 seconds (up to ~ 4 seconds with CV)
Decay: 4ms-2 seconds (up to ~ 4 seconds with CV)
Sustain (based on gate length)
Release 4ms-2 seconds (up to ~ 4 seconds with CV)
Dual LOG/LINEAR VCA
VCAs are essential to your synthesizer. They provide ring modulation effects, stereo panning, delayed vibrato, not to mention the normal envelope shaping of your sounds. This VCA works nicely with 10V PP (+/-5V) signal levels.
Pictures:
ADSR linear curve
ADSR exponential curve
VCA linear curve
VCA log curve
Depth: 32mm
HP: 2 inch
Current Draw: +12: 50mA -12: 30mA
