Description

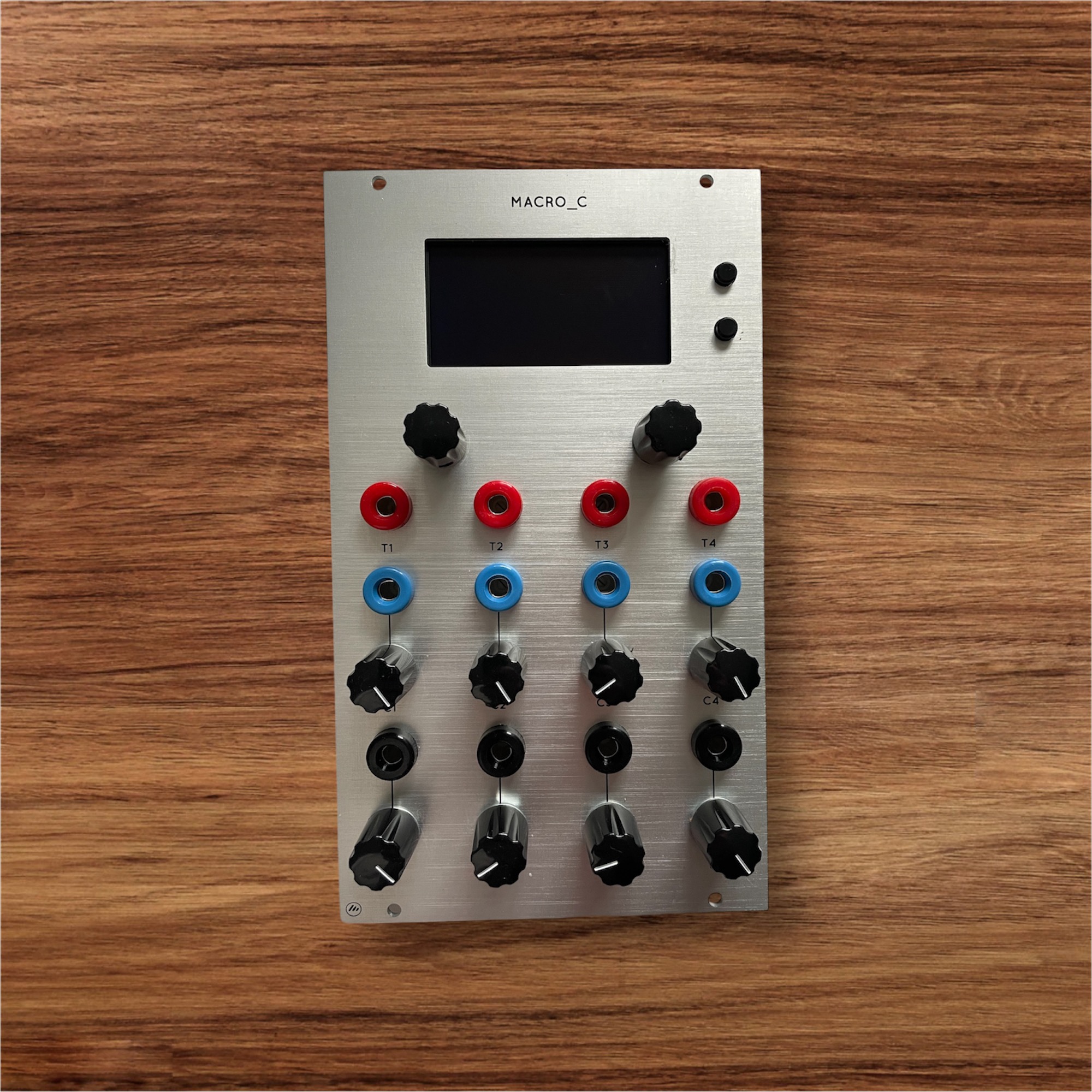

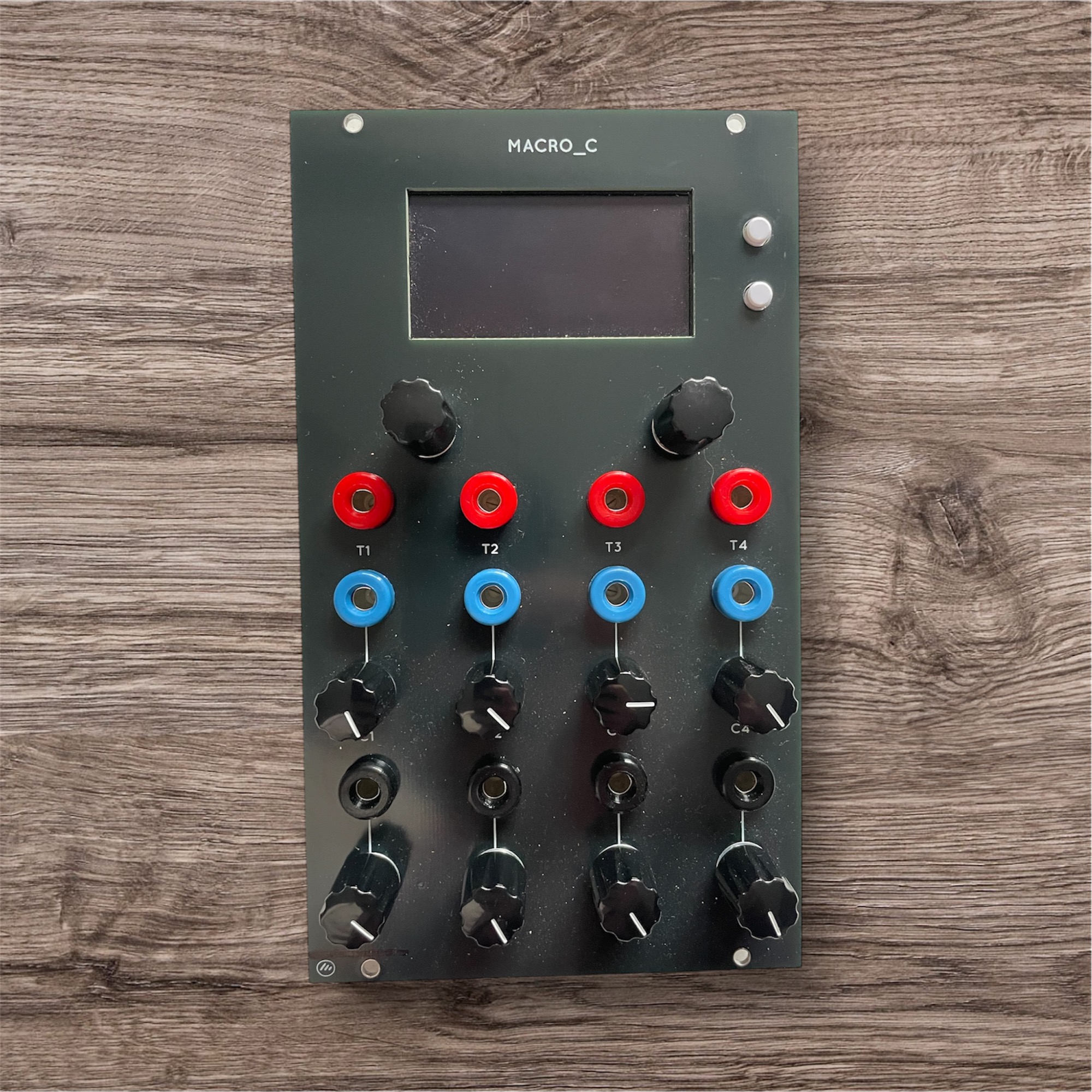

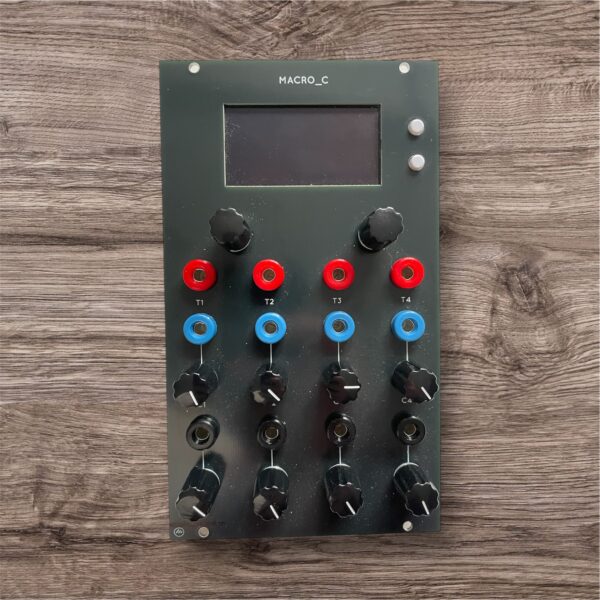

Macro_C is a 4U reimagining of mxmxmx Ornament & Crime, featuring a larger 2.4″ screen (Norns/Teletype size) and attenuators on all 4 of the inputs and outputs.
- 4 TRIGGER inputs
- 4 CV inputs with attenuators
- 4 CV ouputs with attenuators
Teensy 4 or 4.1 running Phazerville or Squares & Circles (to choose when ordering).
Squares & Circles when you want to walk the audio path.
Similar to Monomachine and Machinedrum here we have basically 4 configurable tracks. Each track can be assigned with a synthesizer machine, controlled by a trigger and CV input. As there are mono and stereo machines, the generated audio signal is routed to one or two neighbor DAC outputs by default. E.g you can chain the mono audio signal from an oscillator machine to the neighbor fx-machine with stereo-outputs.
For more information about Squares & Circles: https://github.com/eh2k/squares-and-circles
Phazerville when you want to walk the modulation path.
Apps and Applets by Function
| Function |
Hemisphere Applets |
Full Screen Apps |
| Accent Sequencer |
Palimpsest |
|
| Analog Logic |
Calculate |
|
| Clock Modulator |
ClockDivider, ClockSkip, DivSeq, Metronome, PolyDiv, ProbDiv, ResetClk, Shuffle |
|
| CV Recorder |
ASR, CVRec |
|
| Digital Logic |
Binary Counter, Compare, Cumulus, Logic, Schmitt, TL Neuron, Trending |
Neural Net |
| Delay |
GateDelay |
|
| Drums / Synth Voice |
BootsNCat, BugCrack |
Viznutcracker, sweet! |
| Effect |
Dr. LoFi |
|
| Envelope Follower |
EnvFollow, Slew |
|
| Envelope Generator |
ADSR, AD EG, VectorEG |
Piqued, Dialectic Ping Pong |
| LFO |
Ebb & LFO, LowerRenz, VectorLFO |
Quadraturia |
| MIDI |
MIDI In, MIDI Out (See also: Auto MIDI Output) |
Captain MIDI |
| Mixer |
MixerBal |
|
| Modulation Source |
GameOfLife, Stairs, VectorMod, VectorMorph |
Low-rents, Pong |
| Performance Utility |
Button2 |
Scenes |
| Pitch Sequencer |
Carpeggio, DualTM, Enigma Jr., Pigeons, ProbMeloD, Seq32, SeqPlay7, SequenceX, Shredder, Strum, SwitchSeq, TB-3PO |
Enigma, The Darkest Timeline, Automatonnetz, Sequins, Acid Curds, Passencore |
| Quantizer |
Calibr8, Chordinate, DualQuant, MultiScale, ScaleDuet, Squanch |
Calibr8or, Harrington 1200, Quantermain, Meta-Q |
| Random / Chaos |
Brancher, LowerRenz, ProbDiv, ProbMeloD, RndWalk, Shredder |
Low-rents |
| Shift Register |
ASR, DualTM, Enigma Jr., RunglBook, ShiftGate |
Enigma, CopierMaschine |
| Switch |
Switch, SwitchSeq |
Scenes |
| Trigger / Gate Sequencer |
DivSeq, DrumMap, EuclidX, PolyDiv, ProbDiv, Seq32, ShiftGate, TrigSeq, TrigSeq16 |
|
| VCA |
GatedVCA |
|
| Voltage Utility |
AttenOff, Calculate, Calibr8, Scope, Slew, Stairs, Switch, Tuner, Trending, Voltage |
Calibr8or, References |
For more information about Phazerville: https://github.com/djphazer/O_C-Phazerville
