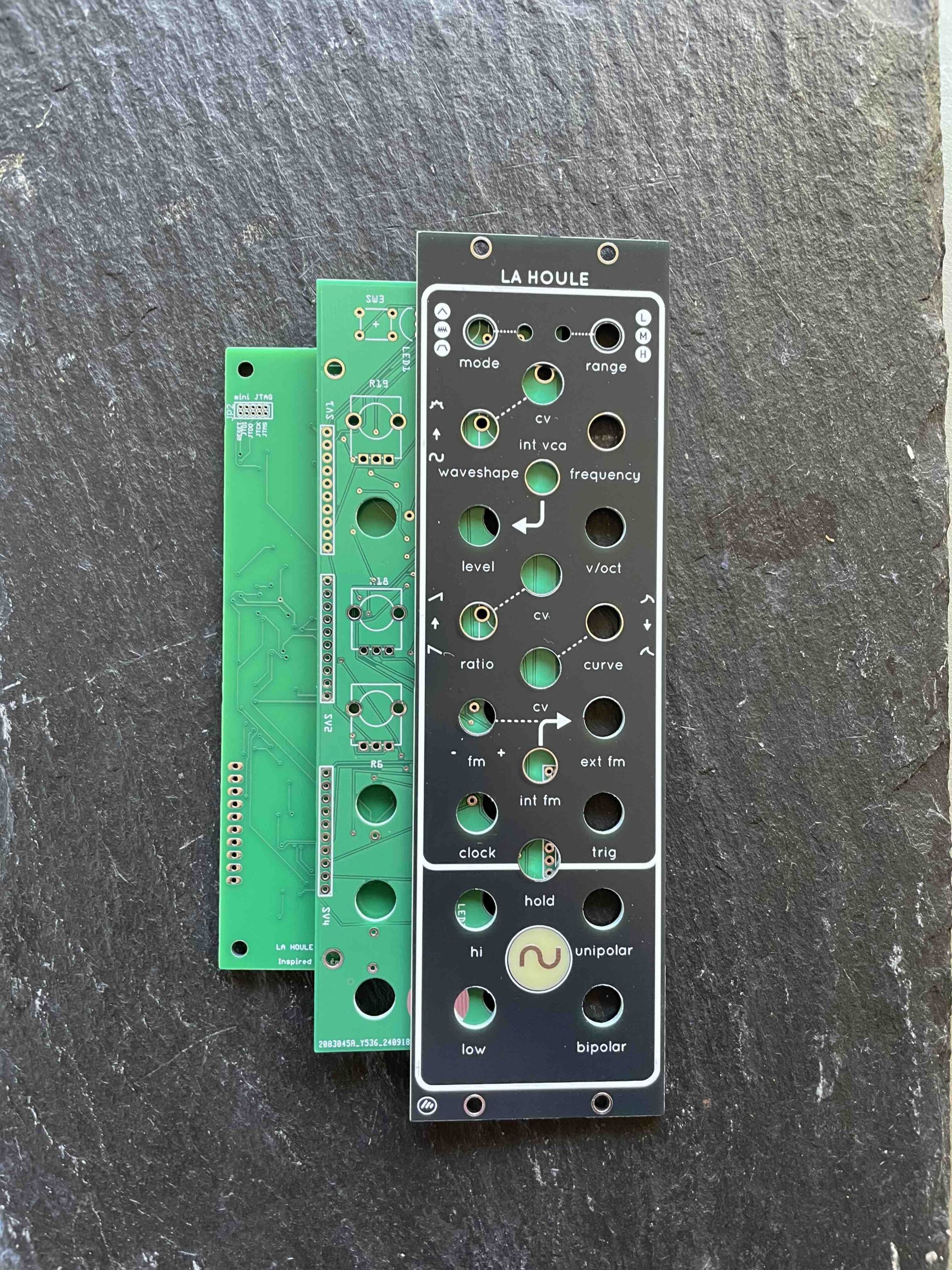

LA HOULE PCB set with panel

LA HOULE is about additive synthesis and many waves. It is the adaption of TIDES in Serge compatible format.

Mouser cart

Github link

Modulargrid

Firmware update procedure only after performing the here under calibration!

Unplug all CV inputs/outputs from the module. Put the FM Switch to EXT FM and connect the output of your audio interface/sound card to the FM input. Power on your modular system with LA HOULE mode switch pressed. The 3 LEDs will blink, with a yellow color.

Make sure that no additional sound (such as email notification sounds, background music etc.) from your computer will be played during the procedure. Make sure that your speakers/monitors are not connected to your audio interface – the noises emitted during the procedure are aggressive and can harm your hearing. On non-studio audio equipment (for example the line output from a Desktop computer), you might have to turn up the gain to the maximum.

When you are all set, play the firmware update file into the module. The LEDs show a cyclic pattern and periodically flash green upon receiving a valid block of data. The unit reboots after the last packet has been received.

In case the signal level is inadequate or too high, the procedure will stop and all 3 LEDs will be lit in red. Try adjusting the output level, press the mode button and retry from the start of the update file.

Calibration procedure

To calibrate the unit:

• Disconnect all CV inputs.
• Connect the note CV output of a well-calibrated keyboard interface or MIDI-CV converter to the V/OCT input. Leave all the other CV inputs unpatched.
• Press both buttons and simultaneously. The first LED slowly blinks in orange.
• Send a voltage of 1.000V to the V/OCT input.
• Press any button. The second LED blinks in orange.
• Send a voltage of 3.000V to the V/OCT input.
• Press any button.

Easter egg Only works with the standard firmware!

• Put both switches to FM EXT and LEVEL EXT inputs to disable the internal normalization.

• Press the top button (mode, labelled A in the manual) for one second. All LEDs light up in yellow.

• Press the top button again for one second. All LEDs light up in green.

• Press the bottom button (range, labelled B in the manual) for one second. All LEDs should light up in red.

An oscilloscope in X-Y mode will show a drawing of a pair of peacocks when visualizing the UNI and BI outputs.
